- 7-inch digital TFT LCD with LED backlight
- Resolution: 800 x 480 pixels
- Dimensions: 165.0 x 104.0 x 5.0mm
- Active area: 152.40 x 91.44mm
- RGB vertical stripe pixel arrangement
- Colors: 262,144
- Response time: 20ms
- TTL electrical interface
- Power consumption: 2.0W
- Operating temperatures: -30 to 85˚C
- Storage temperatures: -40 to 95˚C
- Driving board with VGA input for option
- 7-inch touch panel and touch controller (USB, RS232 and PS/2) for further option
Standard TFT Display
D070C-090114-1
D070C-090114-1

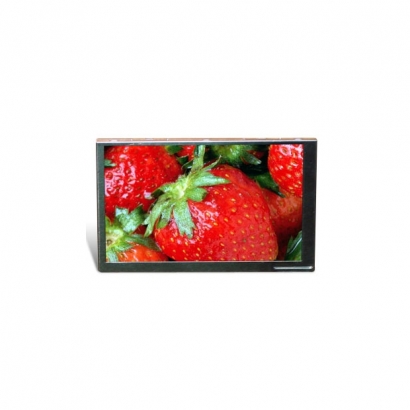

7-inch Digital TFT LCD with 800 x 480 Pixels Resolution and TTL Electrical Interface
