- Supports various TFT LCDs up to XGA resolution by BIOS option
- Supported panel interface: TTL, 18 bits (ZIF33p/32p/40p, 0.5mm bottom contact)
- Supported panel resolution: 320 x 240 to 1,024 x 768 pixels
- Adaptive panel module: any I/F same as below listed TTL 18 bits
- Supported PC input with D-sub 15p: CGA/VGA to XGA mode
- Supported video formats input: NTSC, PAL, and SECAM
- Supported video terminators: CVBS x 2 or CVBS x 1, SV x 1
- OSD control: keypad or IR
- Supports CCD x 1 (auto detect and power on)
- Supports image mirror and reverse function (depending on panel)
- Single power source input 12/24V DC
Control Board

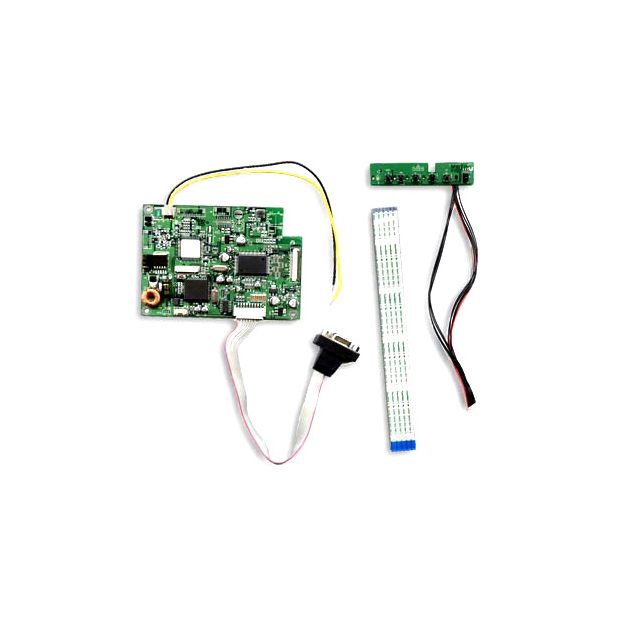

B12-090114-1-1
B12-090114-1-1
Driving Board with VGA Input, Supports Image Mirror and Reverse Function
