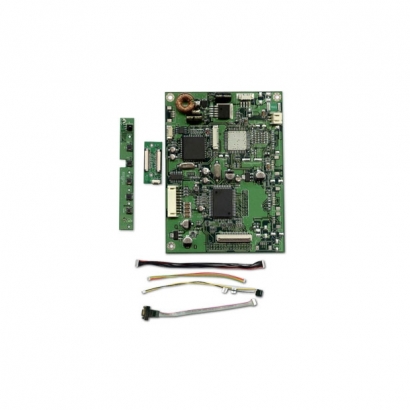

Driving Board with VGA Input and OSD Function Control
－ ＋
Add to Inquiry
B11-090114 _C_-1.jpg
/
DETAIL
  • Applications: navigation, security, video image, and industry medical
  • Supports one channel for RGB signal (0.7Vp-p) of VGA card
  • Supports maximum resolution: 800 x 600/1,024 x 768 pixels, 60Hz (depending on panel specification)
  • Supports maximum four channels for RCA composite input (NTSC, PAL, and SECAM) or one S-Video and three channels of RCA
  • Power source: single voltage 12 to 14V DC, input
  • OSD function control
  • Available supported panel: various of 7-inch TFT panels (Panasonic, Hitachi, Unipac), 8-inch Sharp (LQ080V3DG01) with daughter board, 8.4-inch Toshiba (LTM084P363) with daughter board, and 10.2/10.4/ 12.1/15.4-inch panels with daughter board
  • Audio-out (without AMP) to external IR audio board
  • Audio-out (with 4Ω, 2W of AMP inside) optional
  • CCD handbrake signal control
